Plena Easy Line SD Tuner
Product Features
- MP3 playback from SD card and USB inputs
- FM tuner with RDS, presets and digital control
- Simultaneous operation of SD/USB-player and FM tuner
- Separate outputs for digital source and FM tuner
Technical Specification
|
Power Supply |
|
| Voltage | 115 - 230 VAC ±10%, 50/60 Hz |
| Power supply fuses | 230 VAC 0.63 AT / 250 V | 120 VAC 1.25 AT / 250 V |
| Power consumption (typical) | 10 W |
| Power consumption (Max.) | 50 VA |
| FM tuner | |
| Distortion | < 1 % |
| Total harmonic distortion (1 kHz) | < 0.8 % |
| FM range | 87.5 ÷ 108 MHz |
| Frequency response | 50 Hz ÷ 12 kHz |
| Channel separation (1 kHz) | ≥ 40 dB |
| Intermediate rejection | ≥ 70 dB |
| Signal / noise ratio | ≥ 50 dB |
| Intermediate frequency | 10.7 MHz |
| Input sensitivity | 6 μV e.m.f. (2 uV) |
| Automatic tuning sensitivity | ≤ 50 μV |
| Antenna input | 75 ohms (coaxial) |
| Audio output level | - 10 dBV |
| SD / USB audio player | |
| Maximum storage capacity | 32 GB |
| Maximum number of tracks | 2000 |
| Frequency response | 50 Hz ÷ 20 kHz |
| Signal / noise ratio | ≥ 70 dB |
| Total harmonic distortion (1 kHz) | < 0.1 % |
| Stereo separation | ≥ 60 dB |
| Audio output level | - 10 dBV |
Related product
BOSCH

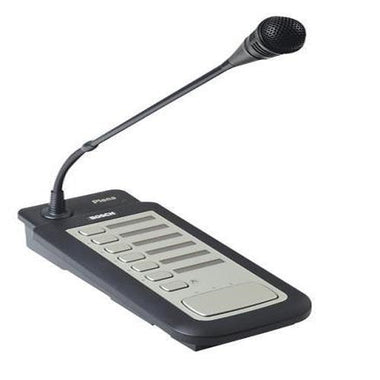

BOSCH LBB 1946/00 Plena Six-zone Call Station
Plena Six-Zone Call Station Product Features Stylish six-zone call station, intended for LBB 1925/10 system pre-amplifier Unidirectional condenser microphone on flexible stem Six zone selectio...
BOSCH

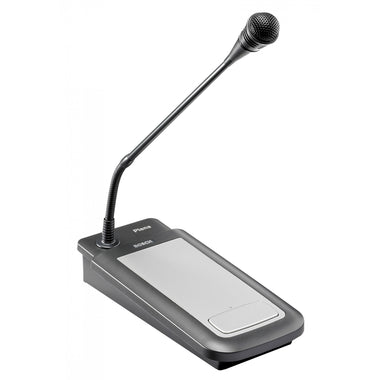

BOSCH PLE-1CS PLENA All-Call Call Station
PLENA Call Station Product Features PTT-key for calls for activation Momentary or toggle Green LED, indicating microphone active Stable metal base design with fixed 2 m cable and lockable Euro ...
ALHAAN

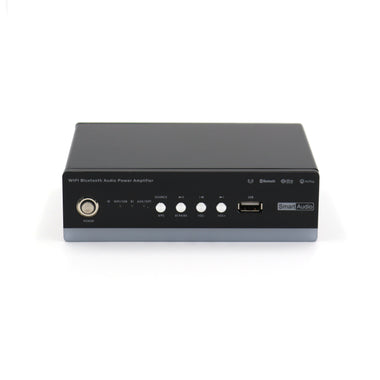

Alhaan AS-53BT Stereo WIFI Audio Router with Bl...
The AS-53BT stereo device streams high resolution music through network connections over long distances. Compact and sleek in design, this device converts outdated passive speakers into modern mul...
ALHAAN

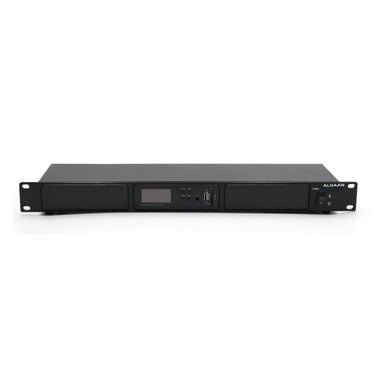

Alhaan MP-53RM Media Player, Support FM, USB an...
The MP-53RM rack mount Media Player supports FM tuner, SD card as well as USB reader, making it an all-in-one audio player. It is ideal for use in places of worship, restaurants, educational center...
BOSCH

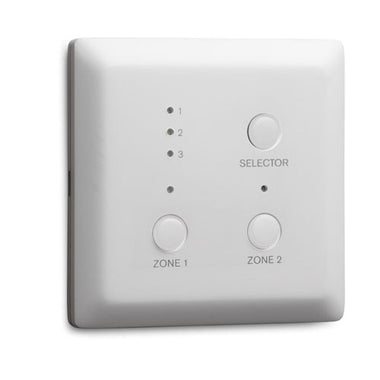

BOSCH PLE-WP3S2Z-EU Wall Panel
Plena Wall Panel Product Features Can be used for all Plena Easyline (PLE) mixer amplifiers Remote selection of three music source inputs Remote zone selection Perfect companion to Bosch volume co...
BOSCH

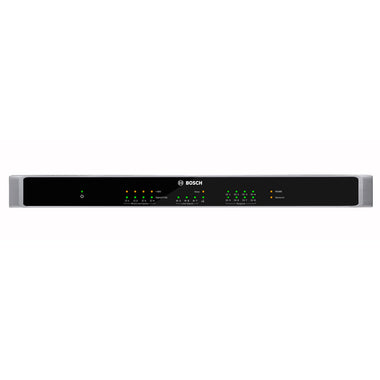

BOSCH PLM-8M8 PLENA Matrix 8 Channel DSP Matrix...
