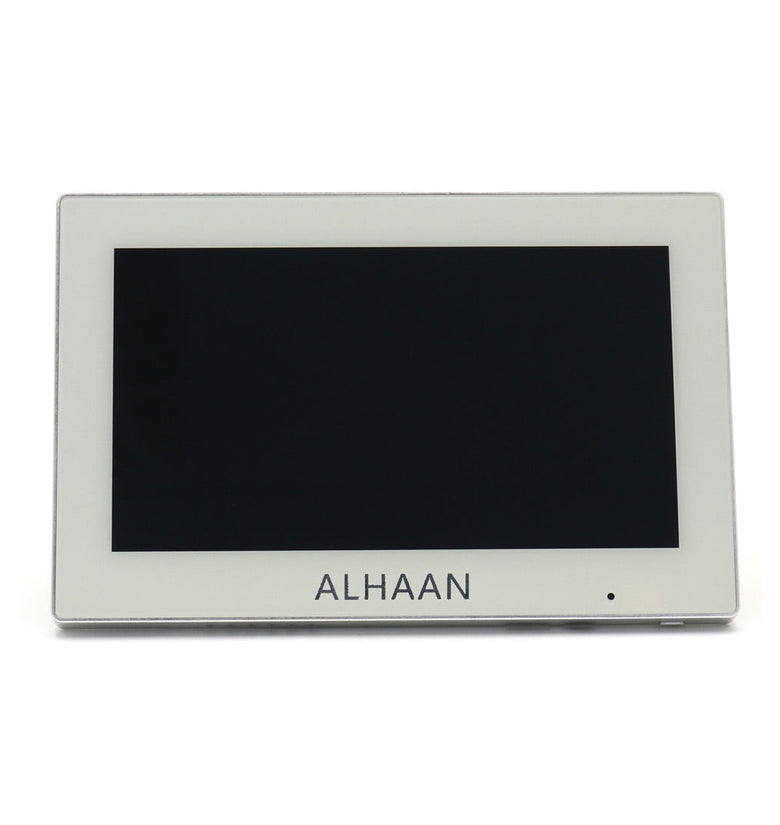

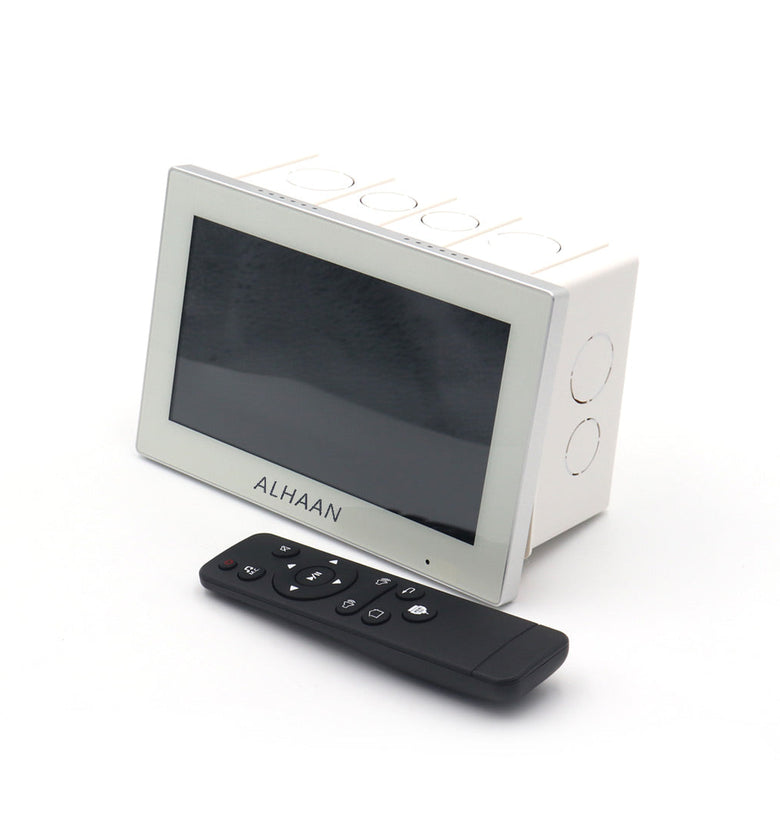

Alhaan WA-420A 4-CH Bluetooth Wall Amplifier with Android

Alhaan WA-420A 4-CH Bluetooth Wall Amplifier with Android

This 4-channel small bluetooth multi-home audio system equipped with micro USB/TF can power 4 pieces of speakers in your home or small commercial area. It uses a high- efficiency class-D amplifier for a maximum output of 4*20 watts, lowimpedance speakers. The cool display shows relevant track music info. Plus, you can control everything –seek, change tracks, and adjust the volume – using the included wireless infrared remote controller.


  • 7 inch touch screen for easy access and control of the system
  • Multi-protocol smart home docking including 485, WIFI, etc.
  • Can install Spotify, Pandora music APPs to play real time music via WiFi
  • Support for external Bluetooth devices such as mobile phones to achieve audio playback, two-way control of playing external Bluetooth device music.
  • Support wireless microphone and family karaoke (optional function);
  • Support audio input and output function; support subwoofer access;
  • Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
  • Suitable for homes, commercial areas, kid’s room, etc.
  • With RS 485 control

Technical Specification

Output power 4*20W
Max. power 4*40W
Speaker Impedance 4-8ohm
System Android 7.1
Network WIFI
CPU ARM Quad-Core Cortex-A35 1.2GHz
Display 7inch HD touch screen
Resolution 1024*600 IPS
Bluetooth wireless range 10M
THD 0.03% (1W.1KHZ)
Frequency response 20 Hz-20 kHz (+/-2dB)
SNR 98db
Music format Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video format MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB,
AVI, 3GP, H, 264, etc.
Power Requirements 110-250VAC
Wiring box size 110*175*59mm
Product size 129*184.6*10.5mm
Weight 0.7kg
