BOSCH LB1 - UM50E Metal Cabinet Loudspeaker Black / White
BOSCH LB1 - UM50E Metal Cabinet Loudspeaker Black / White
Metal Cabinet Loudspeaker LB1 - UM50E
Product Features
- High-fidelity music and speech reproduction

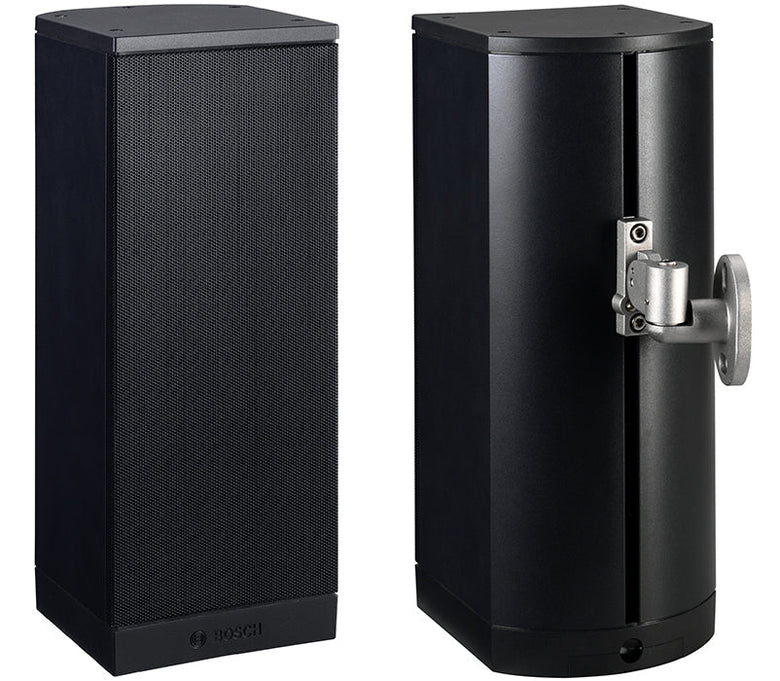

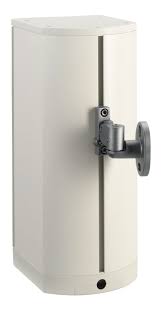

- Supplied with adjustable wall mounting bracket
- Self-restoring overload protection
- Provision for internal mounting of the optional line / loudspeaker supervision board
- EN 54 -24 certified
Technical Specification
| Product | LB1‑UM50E |
| Description | Premium‑sound Cabinet Loudspeaker |
| Maximum power | 75W |
| Rated power (PHC) | 50W |
| Power tapping | 50 / 25 / 12.5 / 6.2 5 W |
| Sound pressure level at rated power / 1 W (1 kHz, 1 m) | 108 dB / 91 dB (SPL) |
| Effective frequency range (-10 dB) | 90 Hz to 20 kHz |
| Opening angle | 1 kHz / 4 kHz (-6 dB) |
| horizontal | 186° / 126° |
| vertical | 84° / 62° |
| Rated input voltage | 20 / 70 / 100 V |
| Rated impedance | 8 / 100 / 200 ohm |
| Connector | 3‑pole screw block |
