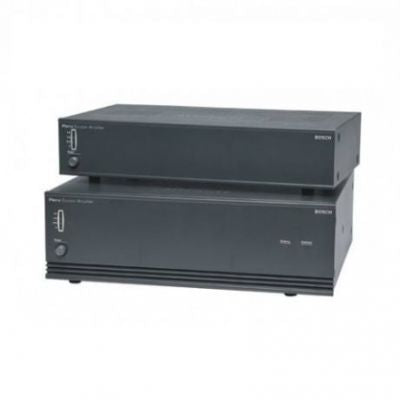

BOSCH LBB 1935/20 Plena Power Amplifier

BOSCH LBB 1935/20 Plena Power Amplifier

Plena Power Amplifier LBB 1935/20

Product Features
  • 240 W power amplifier in a 2U high housing
  • EN 54 -16 certified and EN 60849 compliant
  • 70 V / 100 V and 8 ohm outputs
  • Dual inputs with priority switching
  • 100 V input for slave operation on 100 V speaker line

Technical Specification

Main Power Supply

Voltage 230 VAC, ±10%, 50/60 Hz
Inrush current 9A
Max power consumption 760 VA
Performance
Output power (rms/maximum) 240 / 360 W
Power reduction on backup power -1 dB
Frequency response 50 Hz to 20 kHz (+1 / ‑3 dB at ‑10 dB ref. rated output)
Distortion <1% at rated output power, 1 kHz
S/N (flat at max volume) >90 dB
Line inputs 2x
Connector 3‑pin XLR, balanced
Sensitivity 1 V
Impedance 20 kohm
CMRR >25 dB (50 Hz to 20 kHz)
Gain 40 dB
100 V input
Connector Screw, unbalanced
Sensitivity 100 V
Impedance 330 kohm
Power consumption
Mains operation
Max power 451 W
-3dB 340 W
-6dB 244 W
Pilot tone* 55 W
Idle 16 W
24 V operation
Max power 12.1 A (290 W)
-3 dB 11.4 A (274 W)
-6 dB 8.1 A (194 W)
Pilot tone* 1.7 A (41 W
Idle 0.3 A (7 W)
