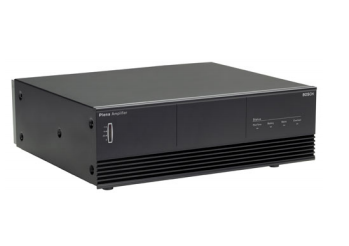

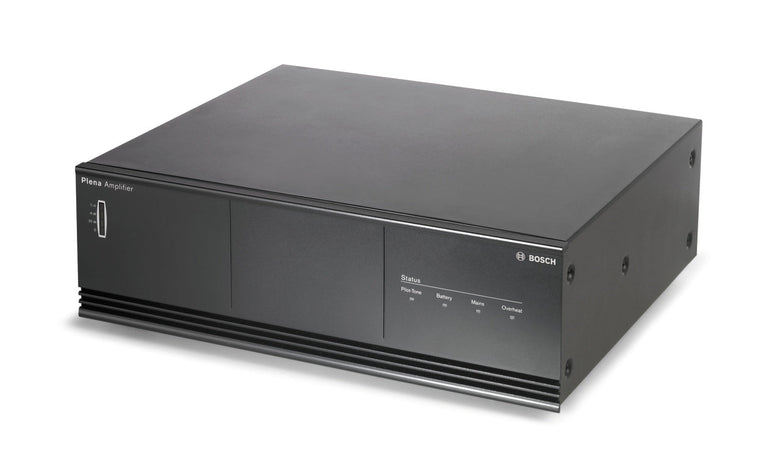

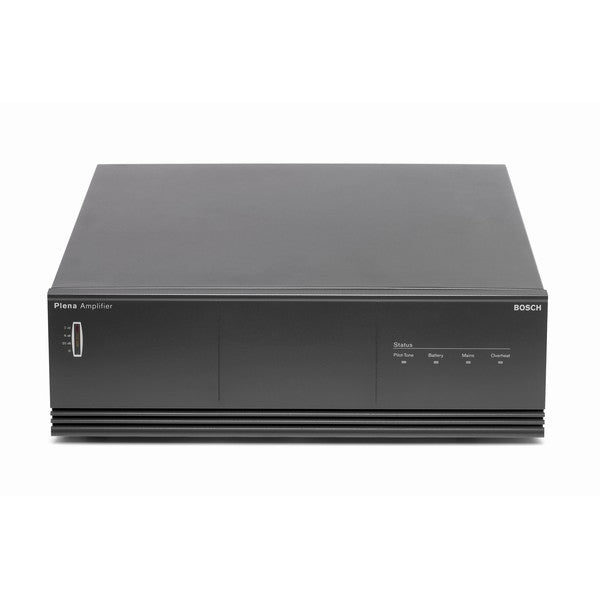

BOSCH LBB1938/30 Power Amplifier

BOSCH LBB1938/30 Power Amplifier

Power Amplifier LBB1938/30

Product Features
  • 480 W power amplifier in a 3U high 19” housing
  • EN 54?16 certified
  • 70 V / 100 V and 8 Ohm outputs
  • Dual inputs with priority switching
  • 100 V input for slave operation on 100 V speaker line

Technical Specification

Mains power supply
Voltage 220/230 VAC, ±10%, 50/60 Hz
Inrush current 19 A
Max power consumption 2200 VA
Performance
Output power (rms/maximum) 480 W / 720 W
Power reduction on backup power -1 dB
Frequency response 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
Distortion <1% @ rated output power, 1 kHz
S/N (flat at max volume) >90 dB
Line inputs 2x
Connector 3‑pin XLR, balanced
Sensitivity 1 V
Impedance 20 kOhm
CMRR >25 dB (50 Hz to 20 kHz)
Gain 40 dB
100 V input
Connector Screw, unbalanced
Sensitivity 100 V
Impedance 330 kOhm
Line loop-through output 2x
Connector 3‑pin XLR
Nominal level 1 V
Impedance Direct connection to line input
Power consumption
Mains operation
Max power 990 W
-3 dB 715 W
6 dB 510 W
Pilot tone* 110 W
Idle 25 W
24 VDC operation
Max power 32 A (770 W)
Relative humidity <95%
Acoustic noise level of fan <48 dB SPL @ 1 m (max output)
