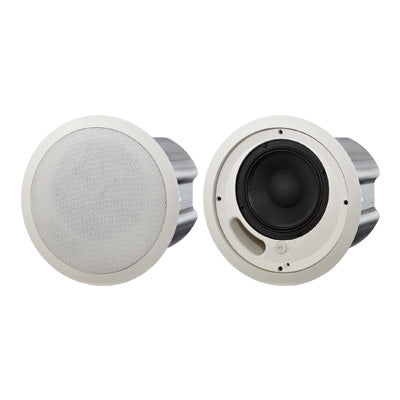

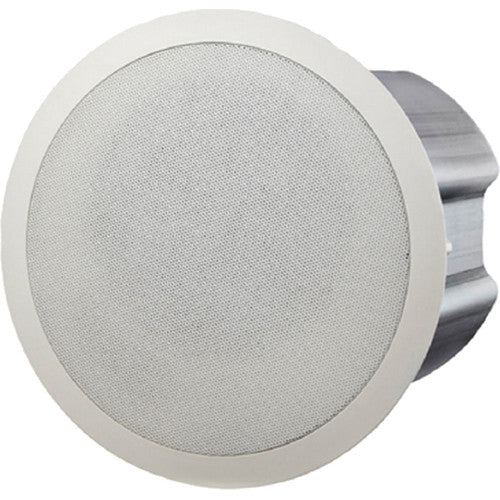

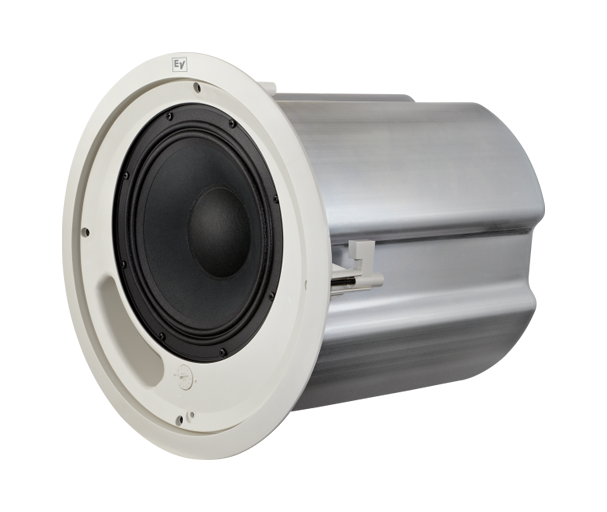

BOSCH LC20 PC60G6-8 Ceiling loudspeaker, 60W, 8

BOSCH LC20 PC60G6-8 Ceiling loudspeaker, 60W, 8

Ceiling loudspeaker - 60W

Product Features

  • High output true compression driver for wide dispersion and superior coverage control out to 10 kHz
  • Long throw 8-inch (200 mm) woofer housed in a large vented 14 gauge steel enclosure for extended LF performance down to 40 Hz
  • 200 watt power handling provides for 114 dB maximum SPL
  • Front baffle transformer tap adjustment switch
  • Includes tile rails and “C” mounting ring

Technical Specification

Frequency Range (-10 dB) 40 Hz - 20 kHz
Coverage (Conical) 120°
HF Power Handling 200 W Program, 100 W Pink Noise
Sensitivity (SPL 1 W/1 m) 88 dB
Max Calculated SPL 108 dB Avg, 114 dB Peak
Impedance 10 ohms
LF Transducer 200 mm (8 in)
HF Transducer 35 mm Compression Driver
Transformer Taps 70V: 60W, 30W, 15W, 7.5W, 8 ohm 100V: 60W, 30W, 15W, 8 ohm
Connectors Removable locking 4-Pin (Phoenix) 2.5 mm (12 AWG) max wire size
Enclosure ABS Plastic (UL94V-0) Baffle, steel back can
Grille Color matched steel grille with fabric
Dimensions (H x Dia) 324 mm x 327 mm (12.76 in x 12.87 in)
Cutout Size 294.3 mm (11.59 in)
Net Weight 8.0 kg (17.6 lb)
Shipping Weight 20.23 kg (44.6 lb)
