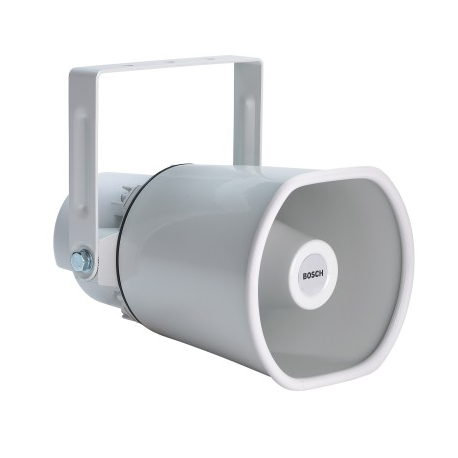

BOSCH LH1-10M10E Horn Loudspeaker

BOSCH LH1-10M10E Horn Loudspeaker

LH1 Horn Loudspeaker

Product Features
  • High efficiency driver
  • Excellent speech reproduction
  • Provision for inside mounting of the optional line / loudspeaker supervision board
  • Water-and dust protected to IP 65
  • EN 54-24 certified

Technical Specification

Rated power (PHC) 10 W
Power tapping 10 / 5 / 2.5 / 1.25 W
Sound pressure level at 10 W / 1 W (1 kHz, 1 m) 112 / 102 dB (SPL)
Sound pressure level at 10 W / 1 W (1 kHz, 4 m) 87 / 76 dB (SPL)
Effective frequency range (- 10 dB) 280 Hz to 5800 Hz
Opening angle 1 kHz / 4 kHz (‑6 dB)
Horizontal 120° / 35°
Rated impedance 125° / 35°
Connector Screw terminal block


View full details
Your cart
Product Product subtotal Quantity Price Product subtotal
BOSCH LH1-10M10E Horn Loudspeaker
BOSCH LH1-10M10E Horn LoudspeakerSNS-BSH-010310M10E
BOSCH LH1-10M10E Horn LoudspeakerSNS-BSH-010310M10E
Regular price
32.000 KD
Sale price
27.000 KD/ea
0.000 KD
Regular price
32.000 KD
Sale price
27.000 KD/ea
0.000 KD
