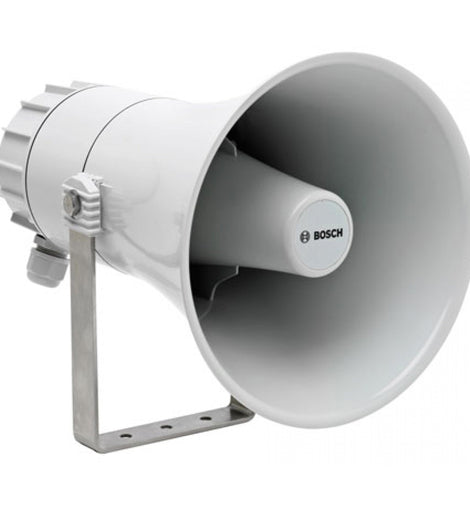

BOSCH LH2-UC15E Horn Loudspeaker, 15W, Marine

BOSCH LH2-UC15E Horn Loudspeaker, 15W, Marine

 15W Marine Horn Loudspeaker

Product Features

  • Suitable for marine and industrial applications in humidity-, chlorine- and salty environments
  • Glass reinforced polyester housing with fire‑retardant properties
  • Water– and dust-protected to class IP67
  • Provisions for internal mounting of the optional supervision boards
  • Type approval certified EN 60945 and EN54‑24 certified

Technical Specification

Maximum power 150 W
Rated power 100 W (100 – 50 – 25 W)
Sound pressure level at 100 W / 1 W (1 kHz, 1 m) 109 / 89 dB
Sound pressure level at 100 W / 1 W (8 kHz, 1 m) 113 / 93 dB
Opening angle at 1 kHz / 4 kHz (-6 dB) 170º / 145º (horizontal) 170º / 170º (vertical)
Effective frequency range (-10 dB) 60 Hz to 17 kHz
Rated voltage 100 V and 28.3 V
Rated impedance 100 ohm and 8 ohm
Connector Ceramic screw terminal
