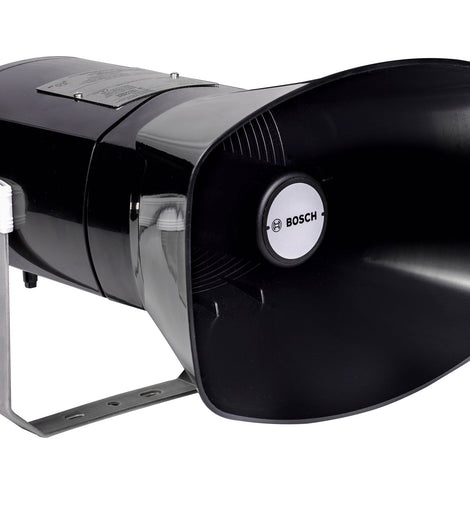

BOSCH LH3-UC25XL Horn loudspeaker, Ex-proof, long flare
BOSCH LH3-UC25XL Horn loudspeaker, Ex-proof, long flare
Ex‑proof Horn loudspeaker
Product Features
- ATEX, IECEx, UL, CSA , and INMETRO certified
- Constructed from sturdy, lightweight, anti-static Polyamide material
- Water- and dust-protected to class IP67
- Provision for connection of the optional supervision boards
Technical Specification
| Maximum power | 30 W |
| Rated power (PHC) | 25 W |
| Rated power | 25 / 15 / 6.5 / 5 / 2.5 / 1.5 W |
| Sound pressure level at rated power / 1 W (1 kHz, 1 m) | 122 dB / 109 dB |
| Opening angle at 1 kHz/ 4 kHz (- 6 dB) | 100 / 30 degrees |
| Effective frequency range (-10 dB) | 380 Hz to 7000 Hz |
| Rated voltage | 100 V |
| Rated impedance | 400 ohm |
| Electrical connection | 2 x 6 pole push terminal |
| Acceptable wire gauge | 0.5 mm - 2.5 mm2 (AWG 20-12) |
