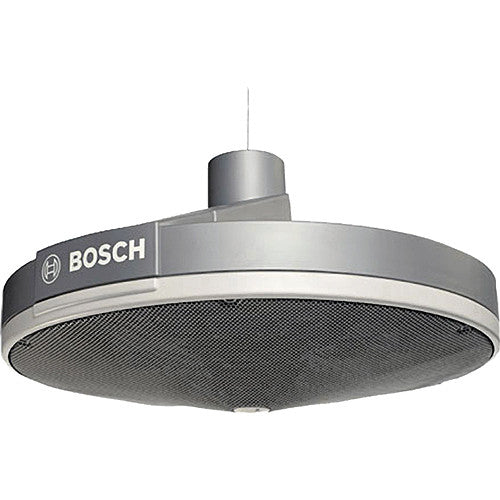

BOSCH LS1-OC100E Hemi Directional Loudspeaker

BOSCH LS1-OC100E Hemi Directional Loudspeaker

Hemi‑directional Loudspeaker

Product Features
  • For large area, high-ceiling applications
  • Architecturally and acoustically innovative
  • Hemi-directional pattern
  • Optional bracket for fixed mounting
  • Provision for internal mounting of the optional line/ loudspeaker supervision board

Technical Specification

Maximum power 150 W
Rated power 100 W (100 – 50 – 25 W)
Sound pressure level at 100 W / 1 W (1 kHz, 1 m) 109 / 89 dB
Sound pressure level at 100 W / 1 W (8 kHz, 1 m) 113 / 93 dB
Opening angle at 1 kHz / 4 kHz (‑6 dB) 170º / 145º (horizontal) 170º / 170º (vertical)
Effective frequency range (‑10 dB) 60 Hz to 17 kHz
Rated voltage 100 V and 28.3 V
Rated impedance 100 ohm and 8 ohm
Connector Ceramic screw terminal
