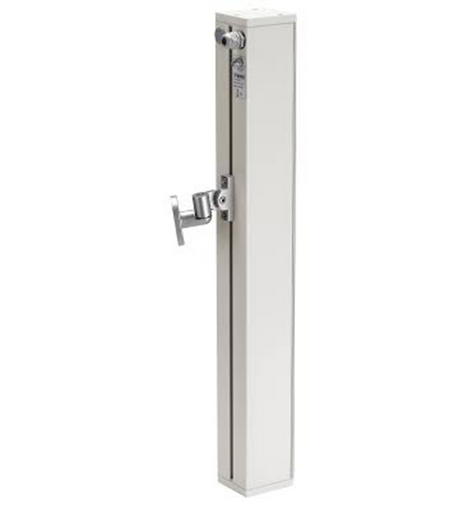

BOSCH LA1 UM20E-1 Metal Column Loudspeakers

BOSCH LA1 UM20E-1 Metal Column Loudspeakers

Bosch 20 Watt Metal Column Loudspeakers

Product Features
  • Good speech intelligibility and background music reproduction
  • For applications where directivity is important
  • Slim-line weatherproof design
  • Swivel wall mounting bracket supplied as standard
  • Robust aluminum construction

Technical Specification

Description LA1-UM20E-1
Maximum power 30W
Rated power (PHC) 20W
Power tapping 20 / 10 / 5 / 2.5 W
Sound pressure level at rated power / 1 W (1 kHz, 1 m) 105 / 92 dB (SPL)
Sound pressure level at rated power / 1 W (4 kHz, 1 m) 108 / 95 dB (SPL)
Effective frequency range (-10 dB) 240 Hz to 16 kHz
Horizontal opening angle at 1 kHz / 4 kHz (-6 dB) 210°/ 94°
Vertical opening angle at 1 kHz / 4 kHz (-6 dB) 80°/ 22°
Rated input voltage 12.65/70/100 V
Rated impedance 8/251/500 ohm
