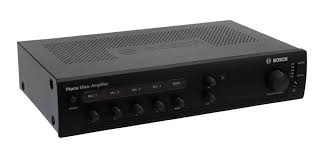

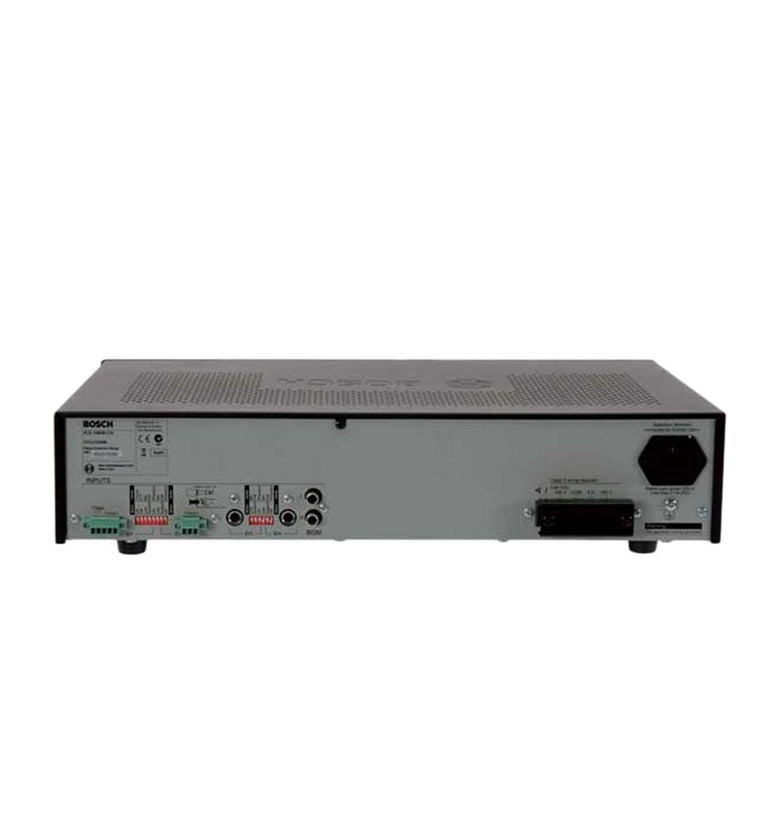

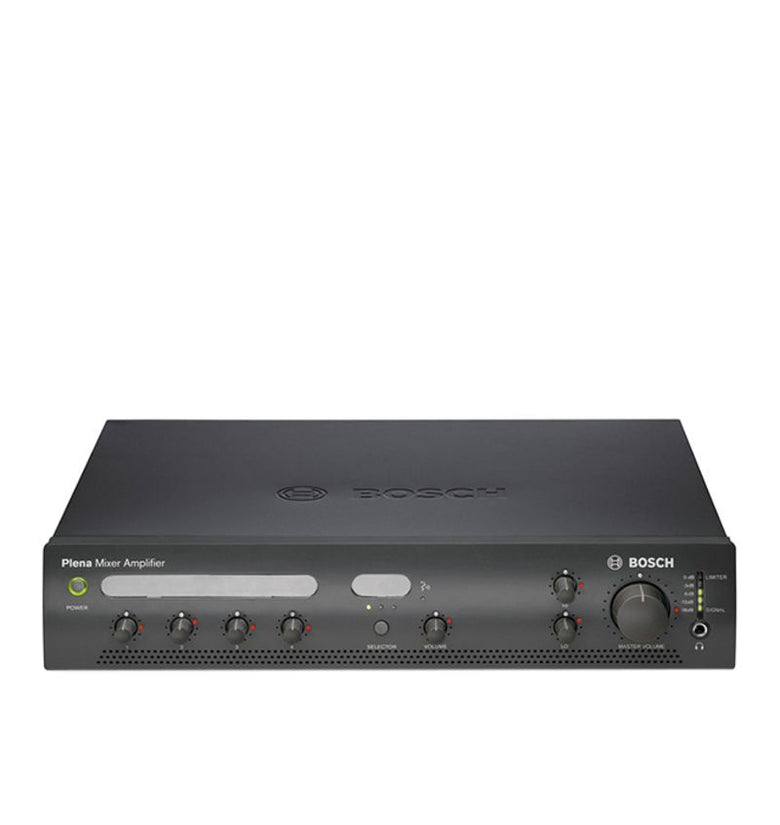

BOSCH PLE-1ME120-EU Plena Mixer Amplifier

BOSCH PLE-1ME120-EU Plena Mixer Amplifier

Plena Mixer Amplifier 1ME120‑EU

Product Features
  • 4 microphone / line inputs, plus music source input
  • Announcement only output, 3-wire volume override
  • Wide range of output power (60, 120 and 240 Watts)
  • 2-tone chime

Technical Specification

Main Power supply
Voltage 230 VAC ±10%, 50/60 Hz (reduced power at lower mains voltage)
Inrush current PLE‑1ME120‑EU 10 A
Power consumption 400 VA
Performance
Frequency response (Line) 60 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
Frequency response (Mic.) 70 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
Distortion <1% @ rated output power, 1 kHz
Bass Control Max. ± 8 dB
Treble Control Max. ± 8 dB
Mic./Line input 4 x
Input 1 (push-to-talk contact with priority) 5‑pin Euro style, balanced, phantom
Input 2 3‑pin Euro style, balanced, phantom
Input 3 and 4 TRS Jack (1/4, 6.3mm) balanced
Sensitivity 1 mV (mic.); 300 mV (line)
Impedance >1 kohm (mic.); >5 kohm (line)
Dynamic range 93 dB
S/N (flat at max volume) >63 dB (mic.); >70 dB (line)
S/N (flat at min volume/muted) >75 dB
CMRR (mic.) >40 dB (50 Hz to 20 kHz)
Headroom >25 dB
Speech filter 3 dB @ 315 Hz, high-pass, 6 dB/oct
Phantom power supply 16 V via 1.2 kohm (mic.)
Music input
Connector Cinch, stereo converted to mono
Sensitivity 200 mV
Impedance 22 kohm
S/N (flat at max volume) >75 dB
S/N (flat at min volume/muted) >80 dB
Headroom >25 dB
