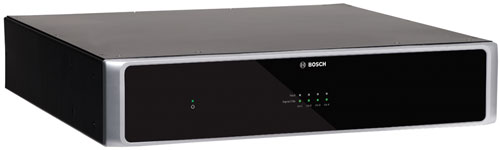

BOSCH PLM-4P125 PLENA Matrix DSP Amplifiers

BOSCH PLM-4P125 PLENA Matrix DSP Amplifiers

PLENA Matrix DSP Amplifiers 4P125

Product Features
  • 4-channel, Class D power amplifier
  • 100V/70V/8Ω/4Ω outputs
  • Complete loudspeaker processing DSP with input mixing; controlled by PC GUI and iOS app
  • Amp Link to connect easily with PLM-8M8
  • Environmentally friendly auto standby mode

Technical Specification

Power Supply

Nominal input voltage 100 - 240 VAC ±10%, 50/60 Hz
Input voltage limits 90 - 264 VAC
Power consumption (-6dB/idle/ standby) 254 W / 27 W / 6 W
Performance
Rated outputs voltage/impedance 100 V / 70 V / 8 ohm / 4 ohm
Rated output power per channel (continuous *) 130 W
Rated output power per channel (burst *) 130 W
Bridged (CH 1‑2 / 3‑4) (continous *) 250 W
Bridged (CH 1‑2 / 3‑4) (burst *) 250 W
THD+N (1 kHz, 6 dBFS) 0.1 %
Dynamic range (A‑weighted) >101 dB
Frequency response (-1dB) 65 Hz to 20 kHz (+0/‑3 dB)
Crosstalk @ 1 kHz <-70 dB
Connectors
Inputs (wired in parallel) • 4x 3‑pin XLR balanced • 4x 3‑pole balanced Phoenix terminal (Metric) • 1x RJ45 (Amp Link)
Loudspeaker output 4x 3‑pole Phoenix terminal (Metric)
Logic and standby overide 2‑pole Phoenix terminal (Metric)
Ethernet Network 10/100 Mbps RJ45
12 V output power for motion sensor 2‑pole Phoenix terminal (Metric)
