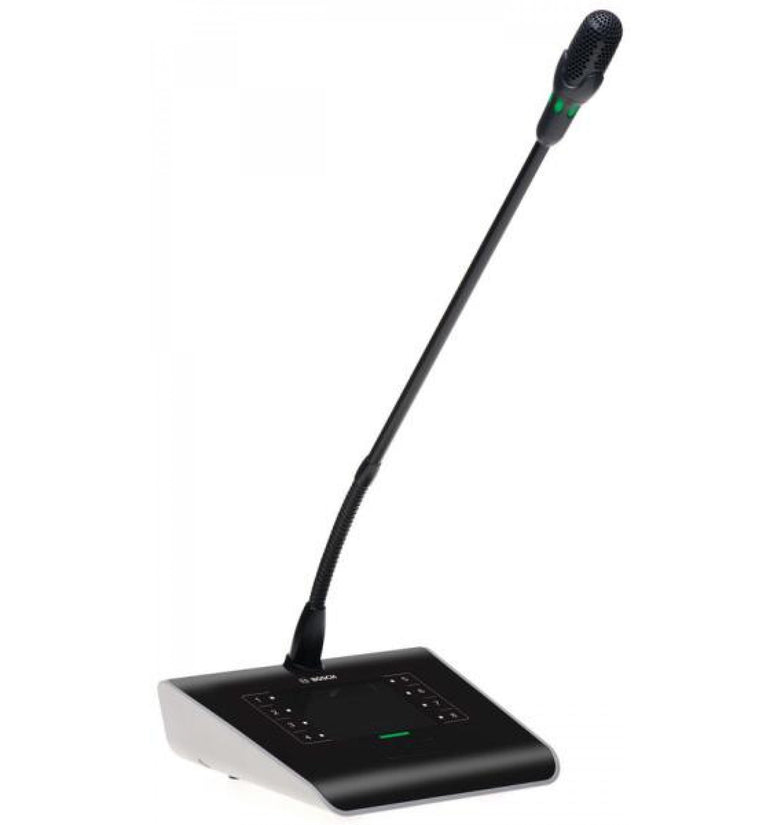

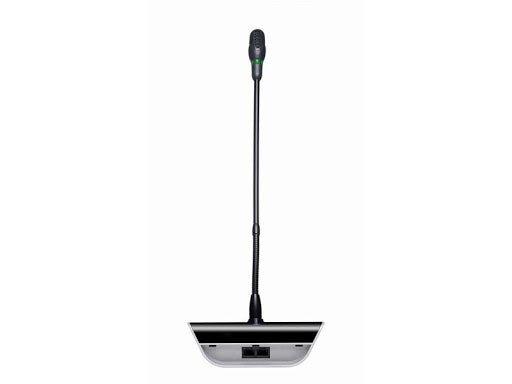

BOSCH PLM-8CS PLENA Matrix 8 Zone Call Station
BOSCH PLM-8CS PLENA Matrix 8 Zone Call Station
PLENA Matrix 8 Zone Call Station
Product Features
- Capacitive touch
- Programmable zone selection
- Modern aesthetic design
- Powered from PLM-8M8
- Loop-through to connect with either more Call Stations or Wall Control Panels
Technical Specification
| Power supply (supplied by PLM‑8M8) | |
| Voltage range | 30 - 50 VDC |
| Power consumption | 1.5 W |
| Performance | |
| Microphone type | Cardoid |
| Frequency response (-3dB) | 100 Hz to 20 kHz (+0/‑3 dB) |
| Input Clip level | 11 dBu (-13.3 dBV) |
| THD+N (1 kHz, 6 dBFS) | <0.03 % |
| Dynamic range (A‑weighted) (mid gain setting) | >97 dB(A) |
| Output level | 24.4 dBu (22.2 dBV) |
| Connectors |
2x |
| RS485 loop‑through |
RJ45 |
