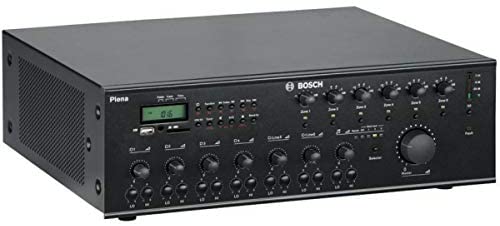

BOSCH PLN-6AIO240 PLENA All-in-One Unit

BOSCH PLN-6AIO240 PLENA All-in-One Unit

PLENA All-in-One Unit 6AIO240

Product Features
  • All-in-One solution for background music and paging
  • Six-zone paging system
  • Built-in AM/FM tuner with presets
  • MP3 player for USB device and SD card
  • Optional Call Station and Wall Panel with local audio source and remote control

Technical Specification

Mains power supply
Voltage 115/230 Vac +/- 15%, 50/60 Hz
Fuse rating 6.3 A (230 Vac) 10 A (115 Vac)
Power consumption 720 W max
Performance
Frequency response Microphone inputs: 100 Hz – 15 kHz +1/-3dB Line inputs: 50 Hz – 20 kHz +1/-3dB (+1/‑3 dB @ ‑10 dB ref. rated output)
Distortion <1% @ rated output power, 1 kHz
Bass control +/- 8 dB @ 100 Hz
Treble control +/- 8 dB @ 10 kHz
Remote devices 2x
Call station input RJ45 for PLN‑6CS
Wall panel input RJ45 for PLN‑4S6Z
Microphone/Line input 6x
Input 1 (Push-to-talk contact for priority/ducking) RJ45 for PLE‑1CS or PLE‑1SCS 3‑pin XLR, balanced, phantom
Input 2-6 (with signal detector for priority/ducking) 3‑pin XLR, balanced, phantom
Sensitivity 1.5 mV (mic); 200 mV (line)
Impedance >600 ohm (mic); >10 kohm (line)
S/N (flat at max volume) >65 dBA (mic); >70 dBA (line)
CMRR (mic) >40 dB (50 Hz to 20 kHz)
Headroom >25 dB
Phantom power supply 18 V – No load
Level detector (VOX) on Inputs 1-6 Attack time 150 ms; release time 3 s
Music inputs 3x
Connector Cinch, stereo converted to mono
Sensitivity 500 mV (inputs1/2) and 300 mV (input 3)
Impedance 10 kohm
S/N (flat at max volume) >65 dBA
S/N (flat at min volume/muted) >75 dBA
Headroom >20 dB
FM tuner
Distortion <1 %
Total harmonic distortion (1 kHz) < 0.8 %
FM range 87.5 - 108 MHz
Frequency response 60 Hz - 12 kHz
AM tuner
AM range 530 - 1602 kHz
Input sensitivity 30 μV
Digital audio player 1x
Frequency response 20 Hz to 20 kHz
S/N ratio >70 dBA
Total harmonic distortion (1 kHz) <1 %
Supported formats MP3, 32 - 320 kbps
