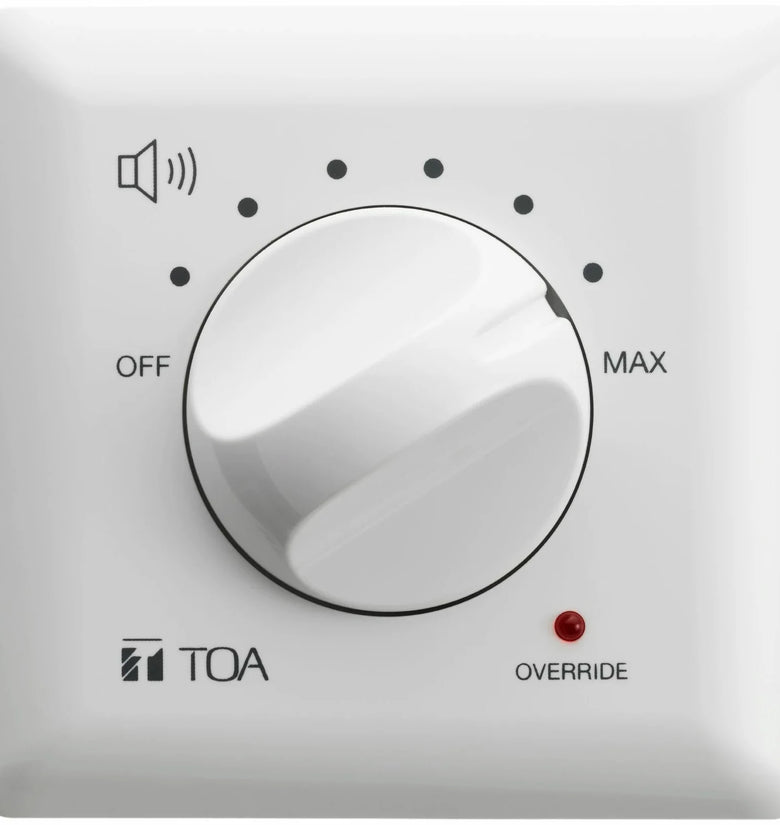

TOA Attenuator 120W w/Box AT-4120B

TOA Attenuator 120W w/Box AT-4120B

Designed with ergonomics in mind, the AT-4000 Series attenuator control knob comes in a size that provides comfortable grip and excellent control with every turn. The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.

Features
  • 8 Step attenuation level control (+/- 3dB)
  • Ergonomic control knob
  • 24VDC overriding relay with red LED indicator (4 wire system only)
  • Terminal block for thicker diameter cable
  • Clip-on face plate
  • Compatible with 2, 3 or 4 wire systems

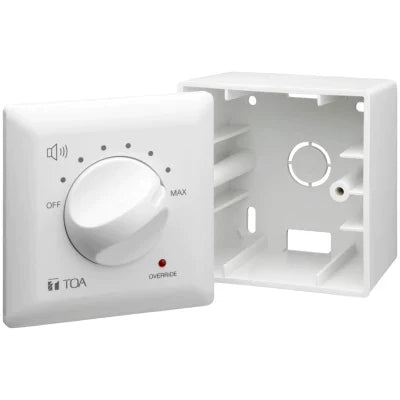

  • Surface or flush mountable (surface box included)
  • Glossy finish in white

Specifications
  • Input Capacity: 120W 
  • Attenuation: 8 steps ( 0 dB, -3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, OFF )
  • Override Indicator: Red LED (4-wire connection only)
  • Overriding Voltage: 24 V, 11 mA DC (4-wire connection only)
  • Terminal: Screw-type x 5
  • Usable Cable: Cable range 22 – 14 AWG
  • Finish: Knob, Cover Panel: ABS Resin, White (RAL9016 or equivalent) / Front Panel (Plate): Surface treated steel plate
  • Dimensions (W x H x D): 86 x 86 x 79 mm
  • Weight: 480 g
  • Accessories: Back box 85.5 (W) x 85.5 (H) x 60 (D) mm x 1, Plate mounting screw x 2
