TOA BS-1030 Compact Wall Speaker Black/White

TOA BS-1030 Compact Wall Speaker Black/White

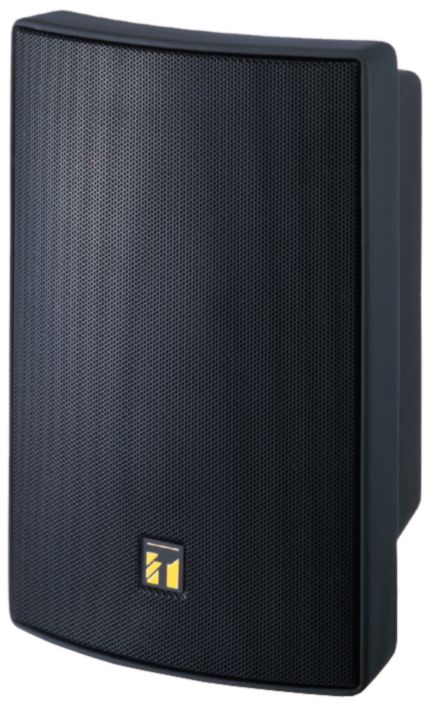

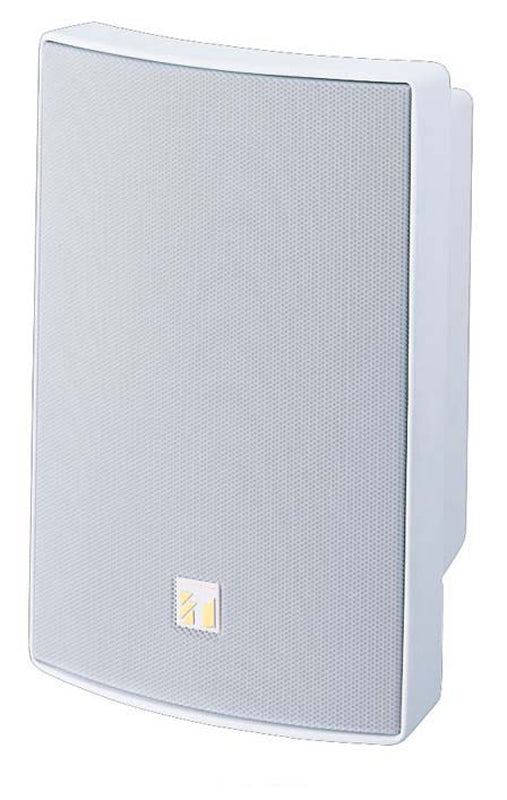

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

  • 2-way bass reflex speaker
  • Cost-effective high power PA box speaker
  • Various installation options
  • Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
  • Splash proof construction in compliance with IPX4

Specification

BS-1030B BS-1030W
Frequency response 80 Hz - 20 kHz 80 Hz - 20 kHz
Connection 2-core cabtyre cable (6 mm diameter) 2-core cabtyre cable (6 mm diameter)
Sensitivity (1 W, 1 m) 90 dB 90 dB
Speaker component 12 cm dynamic cone-type speaker, 2.5 cm balanced dome tweeter 12 cm dynamic cone-type speaker, 2.5 cm balanced dome tweeter
Rated input (high impedance) 30 W 30 W
Tapping 100 V line: 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) 100 V line: 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
70 V line: 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W) 70 V line: 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W)
Rated impedance 8 Ω 8 Ω
Dust / Water protection. IPX4 (can be installed vertically or horizontally *) IPX4 (can be installed vertically or horizontally *)
Operating temperature. -10°C to +50°C -10°C to +50°C
Dimensions. 196 x 290 x 150 mm (W x H x D) 196 x 290 x 150 mm (W x H x D)
Finish. ABS resin, paint, black (RAL 9011 or equivalent) ABS resin, paint, black (RAL 9011 or equivalent)
Accessory (included) Bracket x 1, bracket mounting screw x 2, bracket mounting washer x 2 Bracket x 1, bracket mounting screw x 2, bracket mounting washer x 2
