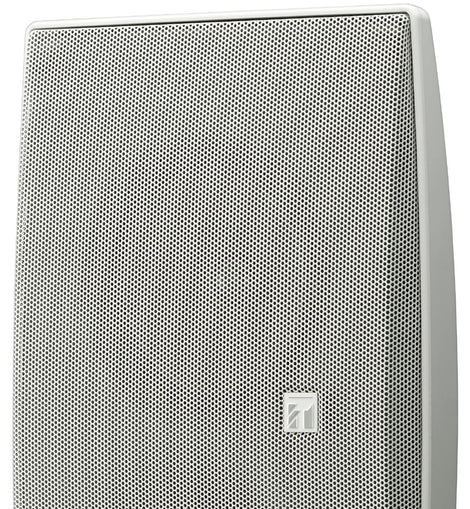

TOA BS-1034 Wall Mount Speaker

TOA BS-1034 Wall Mount Speaker

The BS-1034 is a wall mount speaker that can be installed easily on the wall with help of the plug-in speaker receptacle.

  • 2-way speaker
  • Easy and quick installation
  • Attractive design based on the golden ratio
  • Input impedance selector with rotary switch
  • Fire resistant according to UL 94-V0

Specification

Frequency response 120 Hz - 20 kHz
Connection M4 screw terminal, distance between barriers: 11 mm
Sensitivity (1 W, 1 m) 90 dB SPL
Speaker component Low: 12 cm cone-type, High: Balanced dome-type
Rated input (high impedance) 10 W
Tappings 100 V : 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3W) / 10kΩ (1 W)
70 V : 500 Ω (10 W) /1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W) / 10kΩ (0.5 W)
Dimensions. 210 x 330 x 80 mm (W x H x D)
Finish. HIPS resin, off-white (RAL 9010 or equivalent)
Accessory (included) Speaker receptacle x 1, wall mounting screw x 2
