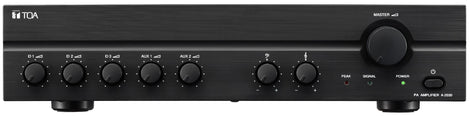

TOA Mixer Amplifier A-2060

TOA Mixer Amplifier A-2060

Multi-purpose, multi-function mixer/power amplifiers specifi cally designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as schools and offices and other intermediate size environments. A choice of different power outputs are offered as well as functions such as paging and dual zone coverage.
  • 4 versions available: 30 W, 60 W, 120 W or 240 W
  • User-friendly front panel allows easy operation
  • Excellent frequency response
  • 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
  • Phantom power is provided to MIC 1, for supplying power to a condenser microphone
  • Wide tone-control adjustment range of ±10dB for both bass and treble
  • 100 V / 70 V line or 4 Ω speaker outputs
  • 2-unit size

Specifications

Power Source 220 - 240 V AC, or 24 V DC
Rated Output 60 W
Power Consumption 72 W (EN60065), 4 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Signal to Noise Ratio 60 dB or more
Input MIC 1: -60 dB*, 600 Ω, balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 Ω, balanced, phone jack
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Mute: Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33)
High impedance: 170 Ω (100 V), 83 Ω (70 V)
Low impedance: 4 Ω (15.5 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) x 100.9 (H) x 280.3 (D) mm (16.54 x 3.97" x 11.04")
Weight 7 kg (15.43 lb)
