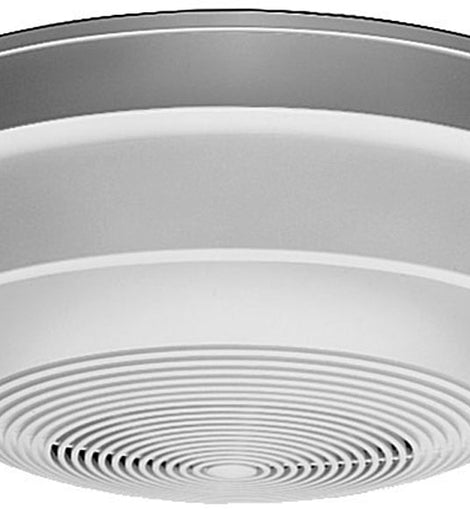

TOA PC-2668 Panel Cone Ceiling Speaker

TOA PC-2668 Panel Cone Ceiling Speaker

The PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.
  • 12 cm speaker
  • Exposed installation to the ceiling (surface mounting)
  • Easy installation with spring catches
  • Push-in terminals for speaker cable
  • In-/Out bridge connection
  • Mounting bracket for optional back box included

Specification

Frequency response 100 Hz - 16 kHz
Sensitivity (1 W, 1 m) 90 dB
Speaker component 12 cm dynamic cone-type
Rated input (high impedance) 6 W
Tappings 6 / 3 / 1.5 / 0.8 W (100 V), 3 / 1.5 / 0.8 / 0.4 W (70 V)
Dimensions. 260 x 202 mm (Ø x D)
Finish. ABS resin, off-white (RAL 9010 or equivalent)
