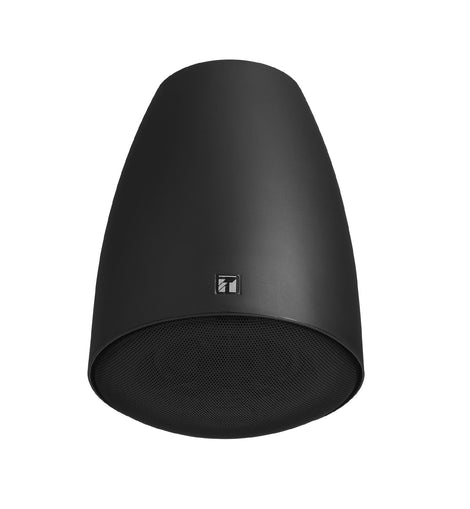

TOA Pendant Speaker PE-304BU 30W

TOA Pendant Speaker PE-304BU 30W

  • Stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & announcements
  • 8 Ω and 25 V/70 V/100 V operation
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
  • UL certified: UL Code: UL1480 UUMW, ULC-S541
  • Bass-refelx type

Specification

Frequency response 95 Hz - 20 kHz (-10 dB from sensitivity)
Sensitivity (1 W, 1 m) 90 dB (330 Hz – 3.3 kHz, pink noise)
Speaker component 12 cm cone-type + balanced-dome tweeter (coaxial)
Rated input (high impedance) 30 W
Tappings 100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W)
70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W)
25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W)
Low impedance: 8Ω
Rated impedance 8 Ω
Dimensions. 186 x 275 mm (Ø x H)
Finish. HIPS resin, black (RAL 9011 or equivalent)
Accessory (included) GRIPPLE® No. 1 x 1, GRIPPLE® No. 2 x 1, Release key (for GRIPPLE®) x 1, Safety wire (ø 1.5 mm (ø 0.06”) x 1,
Hanging wire (ø 2 mm (ø 0.08 ”) x 1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09ft) x 1
View full details
