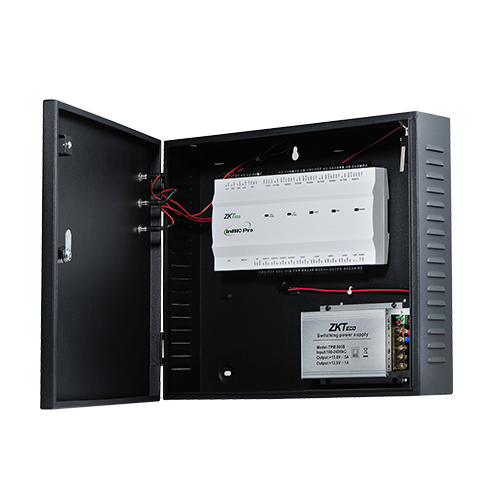

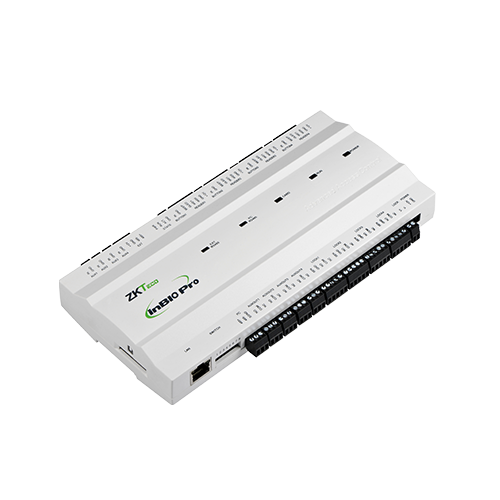

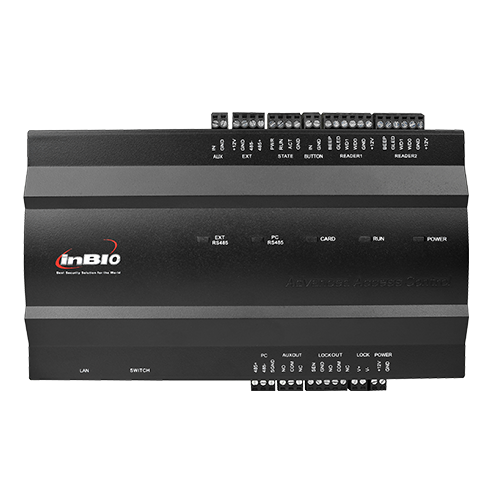

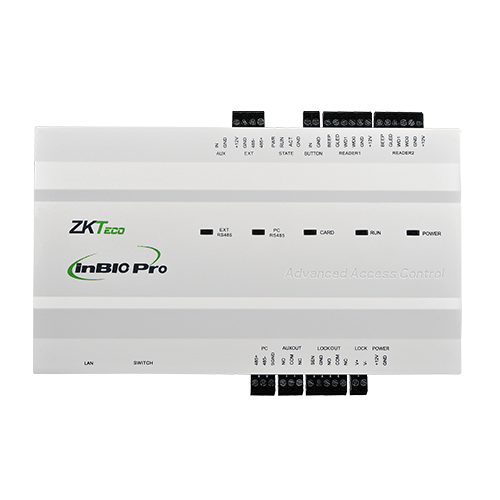

ZKTECO - InBio 260 Pro IP-Based Biometric Access Control Panel | FKGTC

ZKTECO - InBio 260 Pro IP-Based Biometric Access Control Panel | FKGTC

IP-Based Biometric Access Control Panel

Product Features
  • Choice of Readers: For fingerprint-matching, select only ZKAccess FR series fingerprint slave readers.
  • Communication: inBio Pro panels install easily on your network and support both TCP/IP and RS-485 communication.
  • Lowest Total Cost of Ownership: inBio Pro panel firmware can be upgraded in the field.
  • Advanced Access Control Built-In: Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary Input/Output Linkages are built into the firmware.
  • Door Control
  • Capacity: 20,000 fingerprints and 30,000 card holders. Panel is backed up in real-time in on-board optional SD card.
  • For Software Developers: Free SDK is available for integrators and OEM’s to integrate the inBio Pro panels with their or existing security or personnel management applications.

Technical Specification

Number of Doors Controlled 2 Door
Number of Readers Supported 8(4 RS-485 Reader, 4 26-bit wiegand reader
Types of Readers Supported 26-bit Wiegand and RS485 FR Series Reader
Number of Inputs 6( 2 Exit Button, 2 Door Status, 2 AUX)
Number of Outputs 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Card Holders Capacity 60,000
Fingerprint Capacity 20,000
Log Events Capacity 100,000
Communication TCP/IP
Package Dimension 350(L)×90(H)×300(W)mm
Package Weight 3.6kg
CPU  32 bit 1.2GHz CPU
RAM 128MB
Flash Memory 256MB
Power 9.6V-14.4V DC
Operating Temp 0-45 °C
Operating Humidity 20% to 80%
